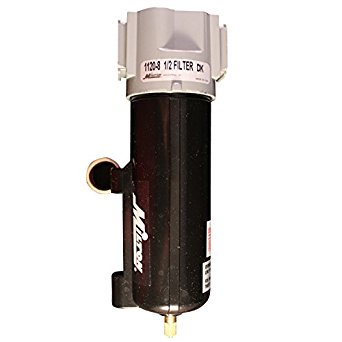

Milton® 1/2" Metal Filter 11208

FILTER 1/2 METAL CUP

This 1/2" NPT Milton® micro filter is supplied with pre-assembled automatic overnight drain, 3 stage baffle system and a porous bronze 40 micron filter element. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems. The corrosion resistant metal bowl has a capacity of 9 ounces. Maximum of 250 PSI and 115 SCFM.

Replacement bronze filter element: P1120-17

• 1/2" national pipe thread
• Maximum pressure of 250 pounds per square inch
• Maximum of 115 standard cubic feet per minute at 100 pounds per square inch
• Install upstream from regulators
• Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
• Replacement bronze filter element: P1120-17

• More Information

  Short Description	Filter 1/2" Metal Bowl
  Number of Items in This Pack	1
  UPC Code	30937112088
  Made in USA	Yes
  FRL type	No
  Key feature	Removes oil and water condensate
  Material Type	No
  Manufacturer	Milton Industries Inc.
  Display on Bloguns CMS Page	No
  NPT thread size	1/2" NPT Inlet
  PSI range	No
  Maximum PSI	250 PSI
  SCFM	No
  Height	2.6875
  Width	2.75
  Length	8.5
  Micron filter size	40 micron bronze filter
  Bowl capacity	9 oz metal bowl capacity
