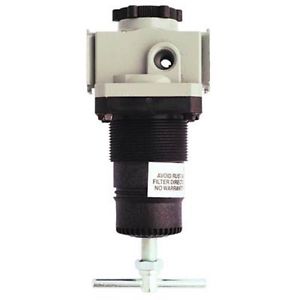

Milton®'s 1/4" NPT Standard Pressure Regulator offers a stable downstream air pressure over a wide range of air flows with accurate control, fast response time, and minimal pressure drop. Offset gauge ports can also serve as two 1/4" supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. As a standard pressure regulator, the 1/4" NPT Regulator has a maximum inlet pressure of 250 PSI with a regulated pressure range of 5-125 PSI.
1/4" national pipe thread
Maximum inlet pressure of 250 PSI
Regulated pressure range of 5-125 PSI
Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
More Information
Short Description
Regulator 1/4" NPT, 2-125 PSI
Number of Items in This Pack
1
UPC Code
30937111135
Made in USA
Yes
FRL type
Regulator
Key feature
Should also be preceded by a filter to elimanate damage to regulator
