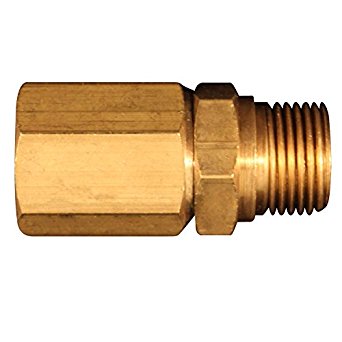

Milton® 3/8" FNPT x 3/8" MNPT Load Genie 10986

LD GENIE 3/8-3/8NPT

This load genie has a 3/8" FNPT inlet and a 3/8" MNPT outlet and is used to unload discharge manifold in either a vertical or horizontal position of any compressor when compressor cycles and flow stops. This combination un-loader and check valve is efficient, quiet, economical and eliminates tubing/fittings of conventional pressure switch un-loader. With a maximum of 250 PSI, this load genie comes with a range of 1 to 6 SCFM.

• 3/8" female national pipe thread inlet, 3/8" male national pipe thread outlet
• Offers 1 to 6 standard cubic feet per minute
• Maximum working pressure of 250 pounds per square inch
• Maximum recommended temperature of 450 degrees Fahrenheit
• Maximum recommended compressor speed of 400 rpm

• More Information

  Short Description	LD GENIE 3/8FNPT-3/8 MNPT OUT
  Number of Items in This Pack	1
  UPC Code	30937303530
  Made in USA	Yes
  FRL type	No
  Key feature	Unloads discharge manifold
  Material Type	No
  Manufacturer	Milton Industries Inc.
  Display on Bloguns CMS Page	No
  NPT thread size	3/8" Male NPT Outlet w/ 3/8" NPT Female Inlet
  PSI range	No
  Maximum PSI	No
  SCFM	No
  Height	0.8125
  Width	0.8125
  Length	1.75
  Bowl capacity	No
