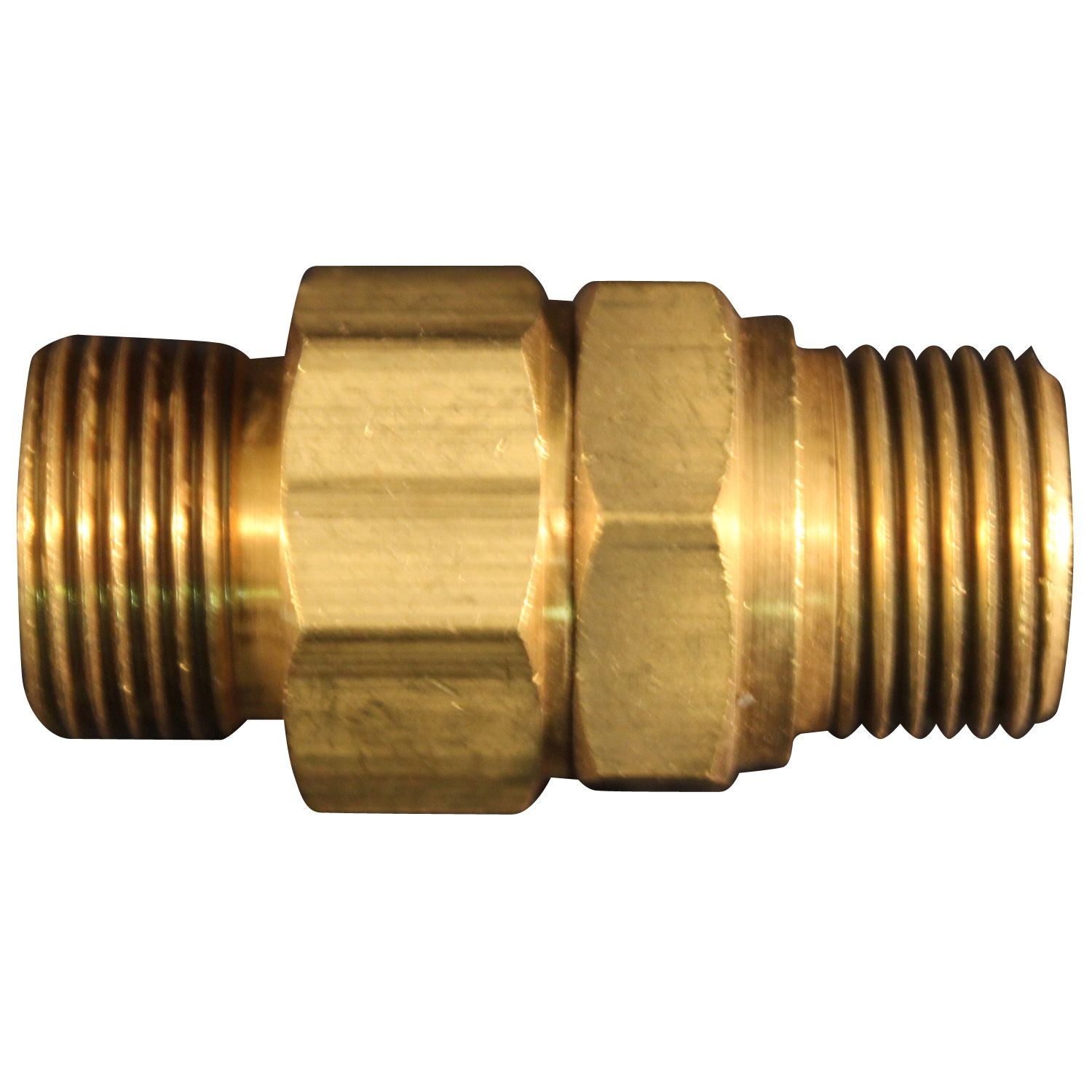

Milton® 1/4" MNPT x 3/8" OD Load Genie 10976

LD GENIE 1/2 IN 3/8

Load genie with a 3/8" OD inlet and a 1/4" MNPT outlet is a combination un-loader and check valve. Unloads discharge manifold in either vertical or horizontal position of any compressor when compressor cycles and flow stops. Efficient, quiet and economical, load genies eliminate tubing/fittings of conventional pressure switch un-loader. Has a Maximum recommended compressor speed of 400 RPM.

• 3/8" Male national pipe thread
• Maximum working pressure of 250 pounds per square inch
• Maximum recommended temperature of 450 degrees Fahrenheit
• Air flow range of 1-6 standard cubic feet per minute

• More Information

  Short Description	Load Genie 3/8 Comp. In 1/4" MNPT Out
  Grouped Product Package Type	Single Pack
  Number of Items in This Pack	1
  UPC Code	30937303509
  Made in USA	Yes
  FRL type	No
  Key feature	Unloads discharge manifold
  Material Type	No
  Manufacturer	Milton Industries Inc.
  Display on Bloguns CMS Page	No
  NPT thread size	1/4" Male NPT Outlet w/ 3/8" Compression Inlet
  PSI range	No
  Maximum PSI	No
  SCFM	No
  Height	1.75
  Width	2.375
  Length	2.875
  Bowl capacity	No
