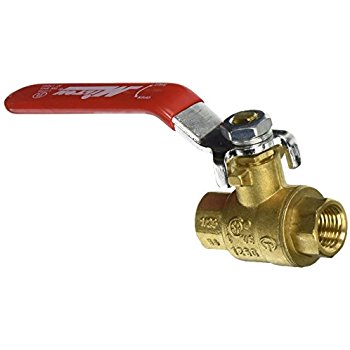

Milton® (S-1094-4) 1/4" NPT Female Full Port Brass Ball Valve
Milton®’s #1094-4 full port brass ball valves with 1/4" FNPT x 1/4" FNPT are high capacity ball valves designed for use with compressed air, water, or oil. These are ideal to isolate segments of the system without disrupting service to the rest of the system. The all-brass body has a plated steel ball valve shut-off. 2" total body length. Teflon seals. Plated ¼ turn handle.
Maximum working pressure:
- Air/Water/Oil: 400 PSI
- Steam: 150 PSI
- At 210 degrees F: 280 PSI
HIGH CAPACITY: Ball valves for use with compressed air, water, or oil. Brass body, steel-plated ball. Plated 1/4 turn handle. Teflon seals.
IDEAL: For isolating segments of the system without disrupting service to the rest. Great for natural gas and home water piping systems.
NATIONAL PIPE THREAD: 1/4" Female NPT (FNPT x FNPT). 2-inch body length.
MAX WORKING PRESSURE: (Air/Water/Oil = 400 PSI; Steam = 150 PSI; 210 degrees F = 280 PSI).
TEMPERATURE RANGE: -20 degrees Fahrenheit to 350 degrees Fahrenheit.
Short Description
Milton® (S-1094-4) 1/4" NPT Female Full Port Brass Ball Valve
Grouped Product Package Type
Single Retail Pack
Number of Items in This Pack
1
UPC Code
30937109446
Made in USA
No
Type
No
Manufacturer
Milton Industries Inc.
Display on Bloguns CMS Page
No
SCFM
No
Key feature
Isolate segments of supply system without disrupting supply to rest of system
