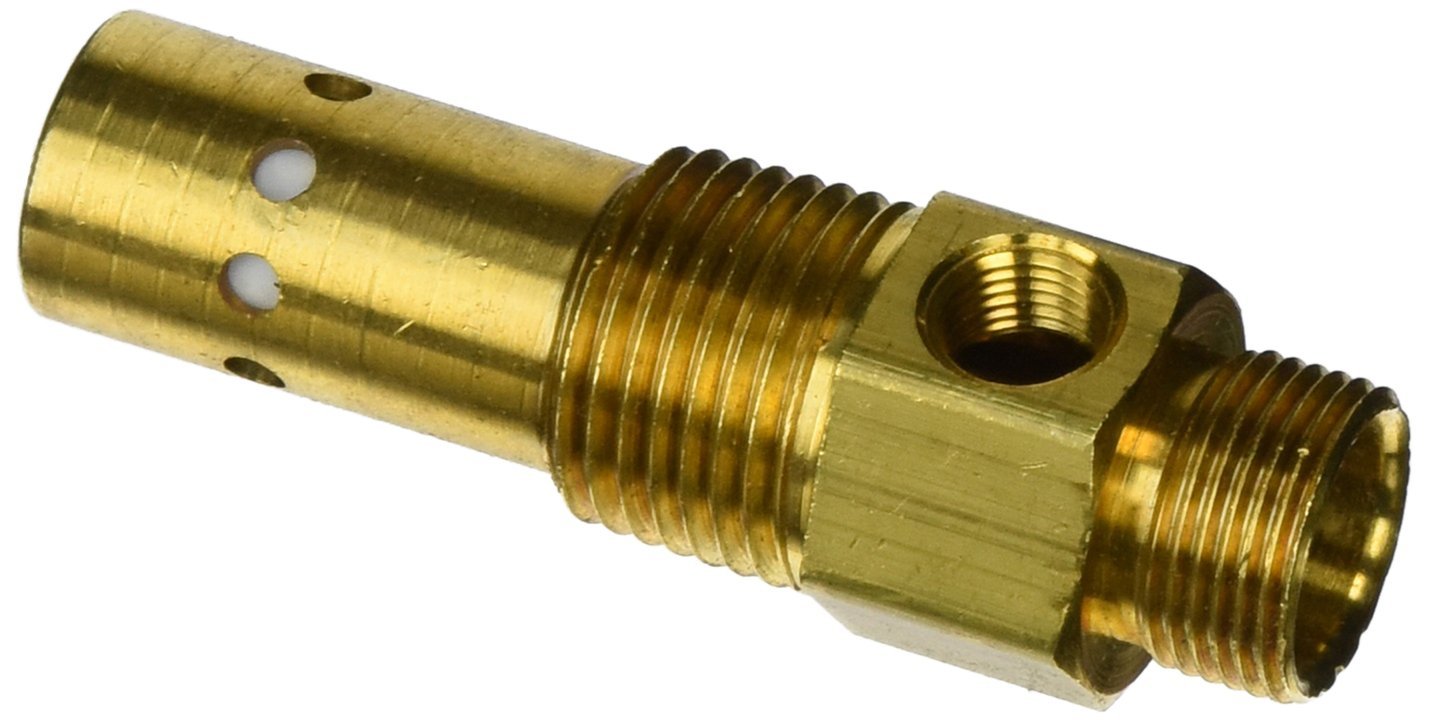

1/2" MNPT tank check valves are used to keep air volume and pressure from escaping back into compressor heads while not operating. The 1/8" FNPT side port is designed for pressure switch application. Maximum pressure of 450 PSI and air flow of 20 SCFM.
1/2" male national pipe thread
1/8" female national pipe thread side port
Maximum working pressure of 450 pounds per square inch
Maximum temperature of 400 degrees Fahrenheit
More Information
Short Description
TANK CHECK VALVE
Grouped Product Package Type
Single Pack
Number of Items in This Pack
1
UPC Code
30937303349
Made in USA
Yes
Type
No
Manufacturer
Milton Industries Inc.
Display on Bloguns CMS Page
No
SCFM
No
Key feature
Keeps air volume and pressure from escaping back into compressor heads while not operating
Benefit #1
1/8" FNPT side port is designed for pressure switch application
