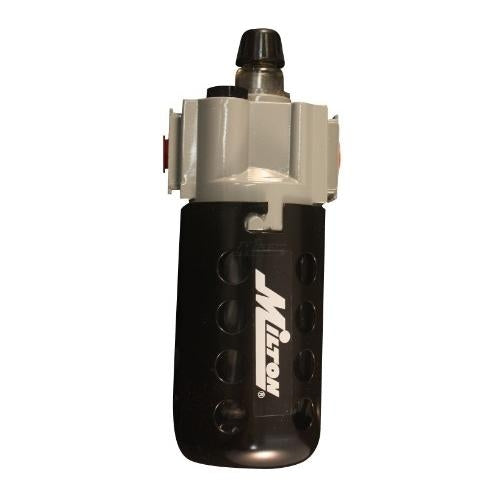

This 1/4" NPT precision lubricator with polycarbonate bowl is the drip style, which allows precise settings for trouble free protection. The adjusting knob can be removed in order to prevent tampering and the sight glass dome allows observation for instant drip rate adjustment. The 5 ounce polycarbonate bowl with metal bowl guard may be filled without shutting down line pressure, delivering oil at an air flow as low as 2 SCFM. Lubricator is designed to provide oil to air tools that require lubrication for operation. Maximum pressure of 150 PSI and 16 SCFM.
1/4" national pipe thread
Maximum pressure of 150 pounds per square inch
Maximum of 16 standard cubic feet per minute at 100 pounds per square inch
Operating temperature range of 40 degrees Fahrenheit to 125 degrees Fahrenheit
Not for use with synthetic lubricants
Short Description
Lubricator 1/4" NPT
Number of Items in This Pack
1
UPC Code
30937110282
Made in USA
Yes
FRL type
Lubricator
Key feature
Great way to provide oil to air tools that require oil for operation
Material Type
No
Manufacturer
Milton Industries Inc.
Display on Bloguns CMS Page
No
NPT thread size
1/4" NPT Inlet
PSI range
No
Maximum PSI
150 PSI
SCFM
No
Height
2.6875
Width
2.75
Length
7
Bowl capacity
5 oz polycarbonate bowl capacity with metal bowl guard
