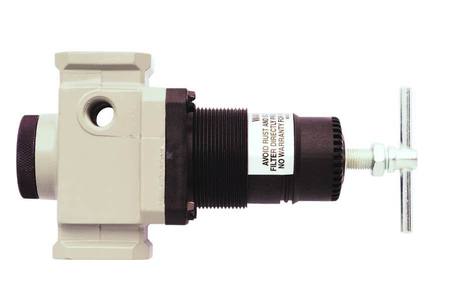

This 3/4" NPT midsize regulator is the relieving type, offering stable downstream air pressure over a wide range of air flows for accurate control, fast response and minimal pressure drop. Offset gage ports can also serve as two 1/4" NPT supply lines. Made up of an aluminum die cast body, balanced piston and molded rubber set, this regulator should be proceeded by a filter to eliminate damage. Maximum of 250 PSI and 220 SCFM.
3/4" national pipe thread
Maximum inlet pressure of 250 pounds per square inch
Maximum of 220 standard cubic feet per minute at 100 pounds per square inch
Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
