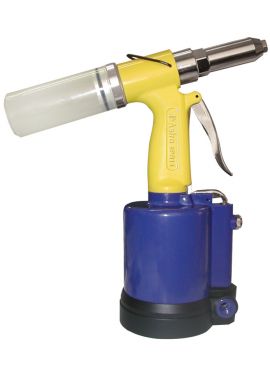

Astro PR14 Air Riveter – 3/32″, 1/8″, 5/32″, 3/16″ and 1/4″ Capacity

AIR RIVETER 1/4 CAP. HEAVY DUTY

• Includes the following nosepieces: 1/4″ (6.4mm), 3/16″ (4.8mm), 5/32″ (4mm),1/8″ (3.2mm), 3/32″ (2.4mm)
• Flip over tool to access remaining 3 nosepieces
• Performs well at any angle
• Gets into hard-to-reach areas
• Provides quick, quiet and comfortable operation preventing user fatigue.

• Part Breakdown

  Download(747 KB)




  Product Info

  Download(207 KB)

• Specifications:

  Rivet Capacity: 1/4"
  Overall Length: 10-7/8" (280mm)
  Net Weight: 3-1/2lbs. (1.6kg)
  Pulling Pressure: 2423 lbs
  Pulling Force is 633lbs
  Stroke: 15mm
  Motor: 1/2hp
  Air Inlet Thread NPT: 1/4"
  Air Hose I.D.
  Size: 3/8" (10mm)
  Avg. Air Consumpt.: 2.320
  Liter/Stroke Air Pressure: 90-120psi

• Capacity	1/4"
