ASTRO TOOLS

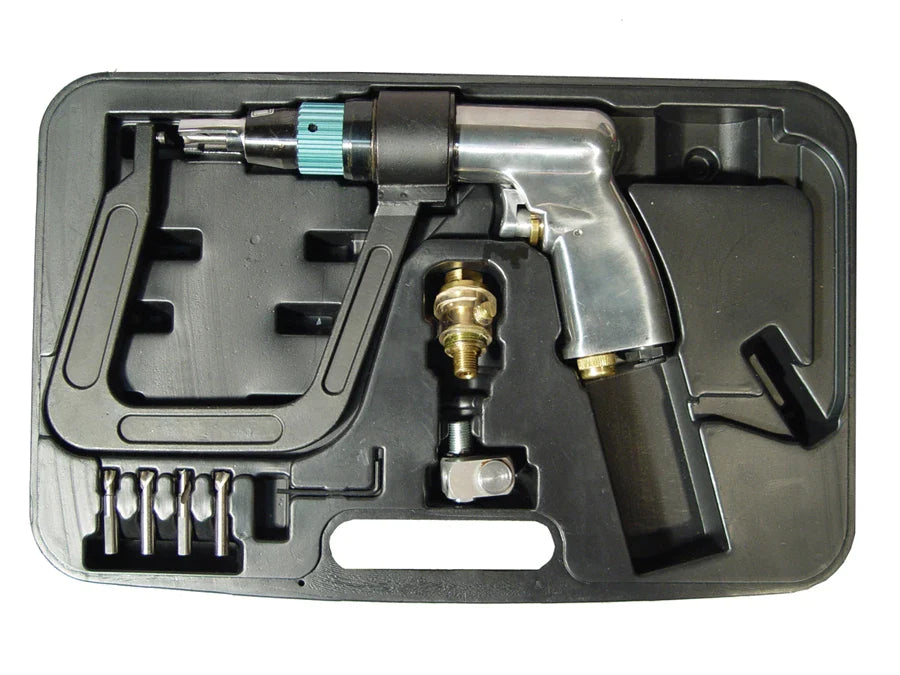

Astro 1756 Air Spot Drill with 5.5″ Deep Clamp Kit and 5 Drill Bits

Astro 1756 Air Spot Drill with 5.5″ Deep Clamp Kit and 5 Drill Bits

Regular price $400.00
Regular price Sale price $400.00
Sale Sold out

AIR SPOT DRILL with 5.5" Deep Clamp Kit

• 2 Speed
• Free Speed 1,600rpm
• Adjustable depth stop which allows you to drill out just the spot weld and not the panel beneath
• Drills out the entire spot weld, eliminating the need for grinding
• Lower speed decreases heat and extends drill bit life

• Kit Includes:
1 – Air Spot Weld Drill with 3 x 8mm plus 2 x 6.5mm
1 – 5.5″ Deep Clamp
5- Drill Bits 2pcs. 6.5mm (#1720) and 3pcs 8mm (#1721)
1 – In Line Oiler (#3000)
1 – 3 Way Swivel (#3SB10)
1 – Plastic Blow Molded Case



Part Breakdown

Download(558 KB)



Product Info

Download(100 KB)
Specifications:
Drill Bit Size Chuck Cap.: 5/16"
Free Speed: 1,600rpm
Overall Length: 9.25" (235mm)
Air Inlet Thread NPT: 1/4"
Air Hose I.D. Size: 3/8" (10mm)
Avg. Air Consumption: 6cfm
Air Pressure: 90-120psi
