APOLLO ECO SERIES 7000 HVLP 1.3 SPRAY GUN W/1QT CUP E7000

ECO SERIES 7000 HVLP 1.3 SPRAY GUN W/1QT CUP

E7000 – Versatile, non-bleed, bottom cup

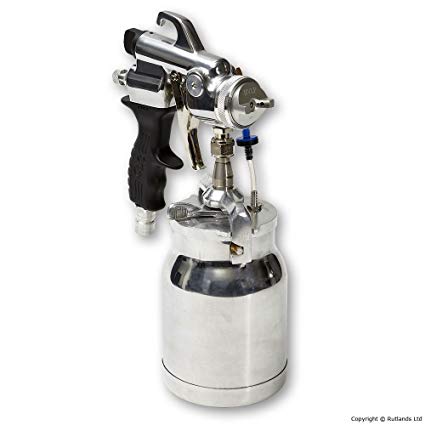

Apollo’s E7000 HVLP spray gun is a non-bleeder style turbine HVLP spray gun supplied with a 1 quart bottom (1 liter) cup assembly providing full pattern control, excellent atomization, low maintenance and minimal overspray.  The E7000 comes with a 1.3mm nozzle set installed, but other sizes are available from 1.0mm to 1.8mm.  The body of the E7000 is cast in aluminum and then machined to aircraft tolerances to provide accuracy and the highest performance possible.  Our cool comfort handle provides a comfortable fit in your hand.

Optional Nozzles/Needles & Air Caps Available: 1.0mm, 1.8mm

Supplied with:

• 1 quart bottom cup with stainless steel parts
• Stainless steel needles and nozzles
• Precision performance
• Fan control – Adjust fan size from large to round dot
• Parts and service support
• Wrench/Spanner and a cleaning brush
• Sample bottle of gun lube
• Spare cup gasket

Technical Documents

E7000 Manual

E7000 Diagram & Parts List
